Scanning nitrogen-vacancy microscope CIQTEK SNVM
Calculate cost
Contact me
CIQTEK scanning nitrogen-vacancy microscope (SNVM) is an advanced scientific analytical instrument that combines diamond nitrogen-vacancy optical detection magnetic resonance (ODMR) technology and scanning atomic force microscope (AFM) technology, which can realize quantitative and non-destructive magnetic imaging of magnetic samples with high spatial resolution and high sensitivity. There are two versions: environmental version and cryogenic version
Features:
- High-quality NV diamond tip
- Quantitative non-invasive magnetic tomography
- Ultra-high spatial resolution 10-30 nm
- Ultra-high sensitivity < 2μT/√Hz
- Support environmental conditions and low temperature and high vacuum
- Technical specifications:

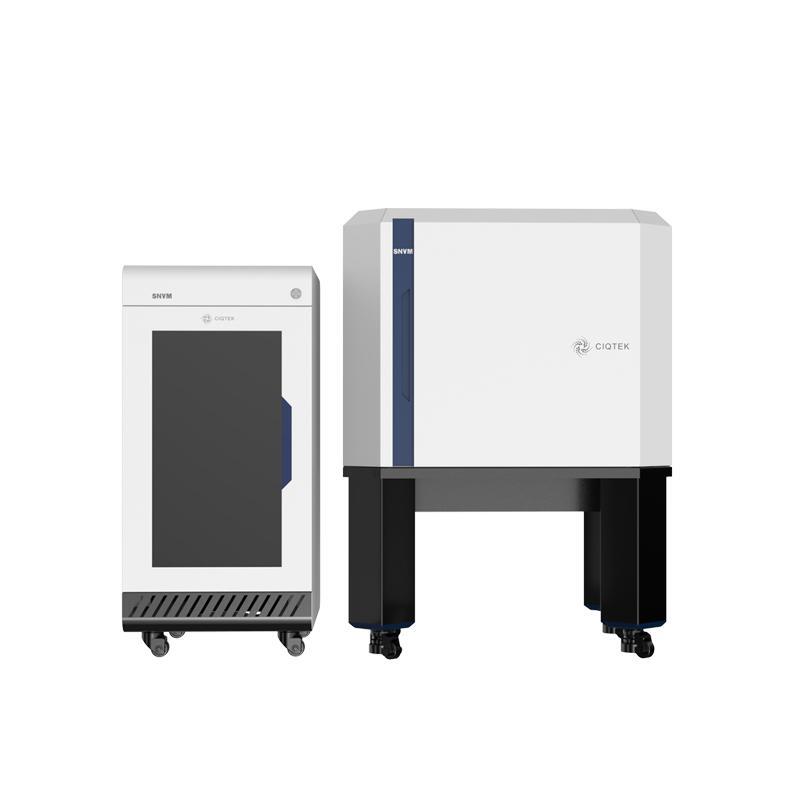

Room temperature version:
Magnetic measurement sensitivity: ≤ 2μT/Hz^1/2
Spatial resolution: 10-30 nm
Working temperature: 300K
Additional functions: Contour magnetic imaging, quantitative magnetic imaging, pulse imaging, magnetic force microscopy, magnetic imaging, morphological imaging

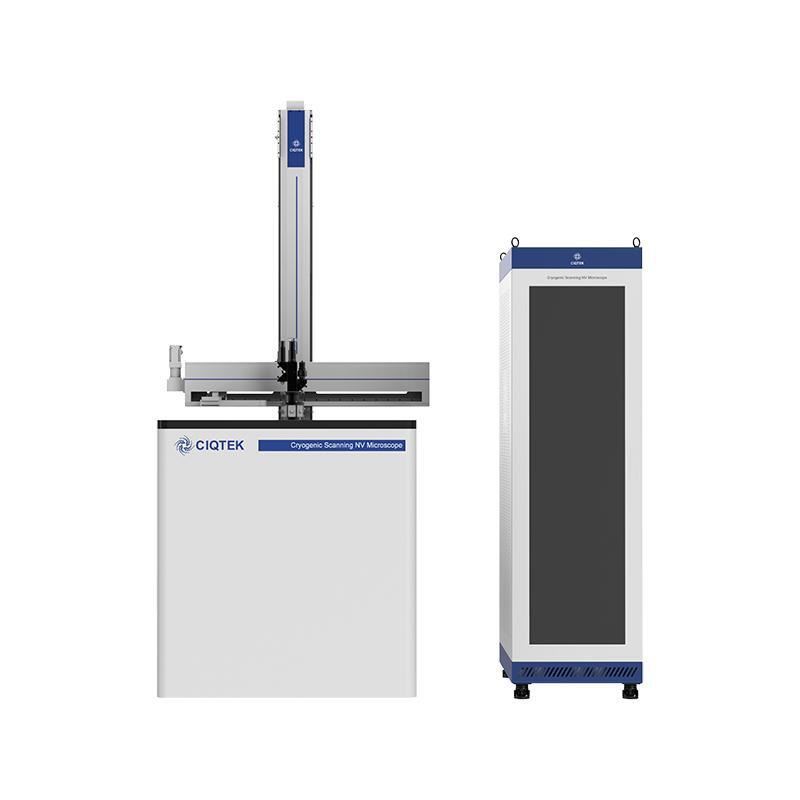

Cryogenic version:
Magnetic measurement sensitivity: ≤ 5 μT/Hz1/2
Spatial resolution: 10-30 nm
Operating temperature: 2K - 300K
Additional functions: Contour magnetic imaging, quantitative magnetic imaging, pulse imaging, magnetic force microscopy, magnetic imaging, morphological imaging
Superconducting magnet option: Helium-free: 1/1/1 T, 3/3/3 T, 9/1/1; Liquid helium: 6/1/1 T, 6/2/2 T
